Device function
1. Learn the m*n types, working principles and m*n components of chemical pumps (customizable according to the type of pump). 2.
Learn the judgment and treatment of general faults of chemical pumps.
3. Understand the correct use of assembly and disassembly methods and tools.
4. Learn to understand the types and uses of sealing materials.
5. Promote the 6S management mechanism and cultivate students' good professional qualities.
6. Understand the safe operating procedures during the assembly and disassembly process.
Design parameters
Overall dimensions: 2500x800x2000mm.
Public facilities
None

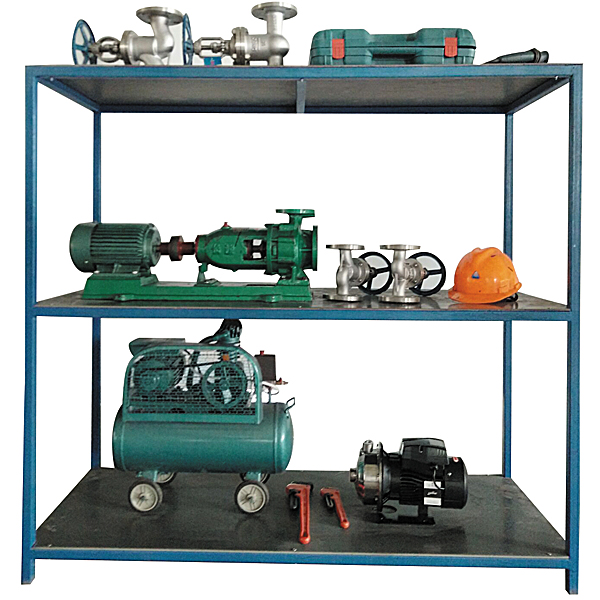

M*n equipment
Operating table: 1000x700mm steel operating table, with soft operating pads on the top and a bench vise at one end.
Shelves: 1000x700mm, can be used to place spare parts, tools, pumps and consumables.
Centrifugal pump: flow rate 12m3/h, head 20m, speed 2800r/min, motor , coupling 1 set.
Gear pump: flow rate 60L/h, discharge pressure 0.3MPa, speed 1350r/min, equipped with motor, coupling 1 set.
*r compressor: exhaust volume 0.036L/min, working pressure 0.8MPa, speed 2800r/min 2 sets.
Motor 1.1KW, 2 sets.
Bearing puller: 8/12 inch.
Transfer box: 400x600mm.
Copper rod: Φ30x300mm.
Consumables set: bolts and nuts, flange gaskets, joint gaskets, etc.
Auxiliary tools: socket wrench, rubber hammer, wooden hammer, iron hammer, screwdriver, open-end wrench, adjustable wrench. Virtual simulation software for
mechanical tr*ning safety education: This software is developed based on unity3d. The software adopts the form of three-dimensional roaming. The movement can be controlled by the keyboard and the direction of the camera can be controlled by the mouse. There are mechanical safety distance experiments, mechanical safety protection device experiments, and basic assessments of mechanical safety protection design. During the experiment, the three-dimensional roaming screen uses arrows and footprints to prompt movement to the experimental position. The circle around the mechanical object shows the working radius. The experimental process is accompanied by a dialog box reminder of the three-dimensional robot.
A. The content of the mechanical safety distance experiment includes the safety distance experiment to prevent the upper and lower limbs from touching the dangerous area (divided into 2 types of fence heights and opening sizes). After choosing to enter, the GB23821-2009 "Safety Distance for Mechanical Safety to Prevent Upper and Lower Limbs from Touching Dangerous Areas" requirements pop up in front of the camera. Wrong demonstration: The experimental process is that after the human body enters the working radius of the mechanical object and is injured, the bloody screen and voice reminders are received. Mechanical injury, and then return to the original position and conduct the next experiment. The final step is the correct approach.
B. Mechanical safety protection device experiments are divided into safety interlock switches, safety light curt*ns, safety mats, safety laser scanners and other protection device experiments. Optional categories (safety input, safety control, safety output, others), manufacturers, product lists (safety interlock switches, safety light curt*ns, safety mats, safety laser scanners, safety controllers, safety relays, safety fences). The installation location has a blue flashing frame reminder. The experimental process is: select the safety fence and install it, select the safety interlock switch (or select the safety light curt*n, safety mat, safety laser scanner) and install it, select the safety controller and install it to the electrical control box, select the safety relay and install it to the electrical control box, and click the start button on the electrical control box. If you enter the dangerous area, the system will prompt an alarm sound, and the mechanical object will stop working. Select the reset button on the electrical control box to stop.
C. The basic assessment of mechanical safety protection design requires the completion of the installation of the mechanical safety system, the correct installation of safety guardr*ls, safety interlock switches, safety light curt*ns, safety mats, safety laser scanners, safety controllers, safety relays, 24V power supplies, signal lights and emergency stop buttons. The assessment is divided into ten assessment points. Some assessment points have 3 options, which are freely selected by students. After the final 10 assessment points are selected, submit for confirmation, and the system automatically calculates the total score and the score of each assessment point.
D. The software must be on the same platform as a whole and must not be displayed as a separate resource.
At the same time, the VR installation package of this software is provided to customers to facilitate users to expand to VR experiments. VR equipment and software installation and debugging do not need to be provided.
